CF Ring

248.00495.00

Clear

The GLINK Carbon fiber Ring, where you attach your gimbal or handheld camera.

SKU: N/A Category:

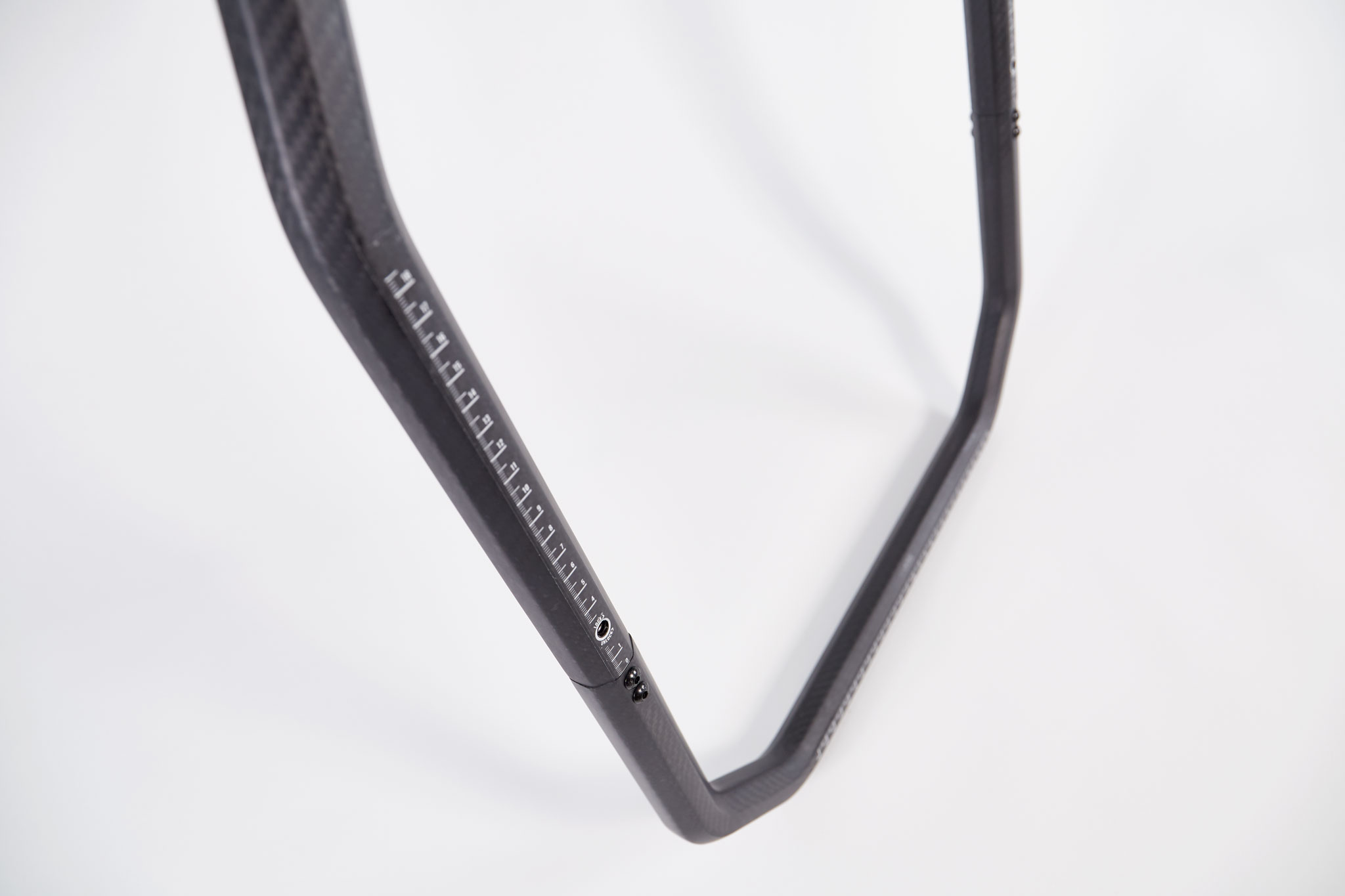

The GLINK CF Ring consists of both the GLNK CF top frame and the CF bottom frame. Both frame units assembled together servers as the main support ring for connecting to the rest of the GLINK system. The GLINK CF Ring is a sturdy octagonal shaped CF tube allowing solid and stable mounting for various GLINK parts such as the GLINK Gimbals, the GLINK MoVI / R2 mount, the GLINK monitor clamps and/or GLINK feets. The frame is designed to be as narrow as possible in width, to give as much freedom as possible to be creative.

The CF Ring is sold either as a full ring, with both the top and bottom parts, or as separate parts, either the top or the bottom:

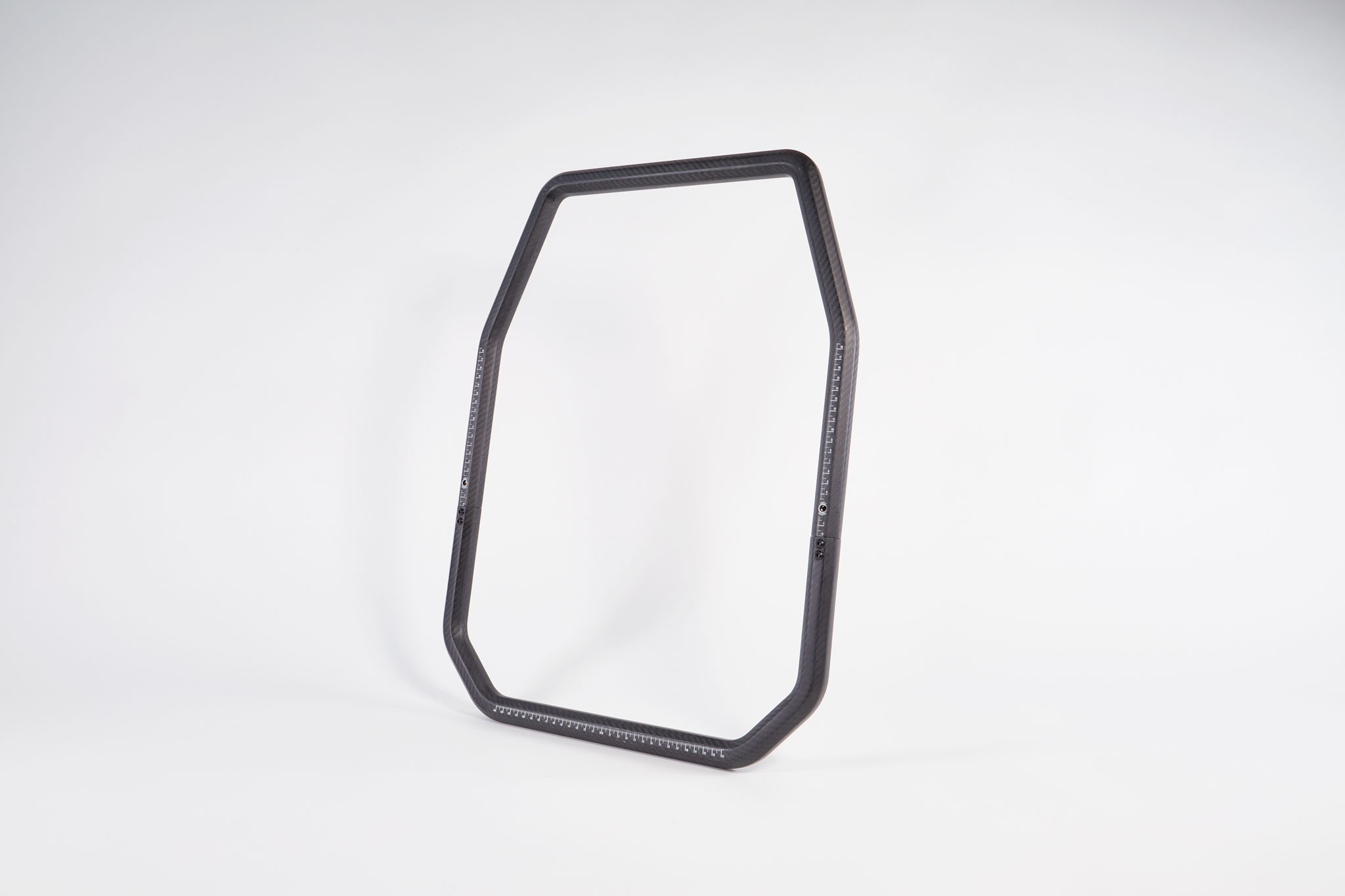

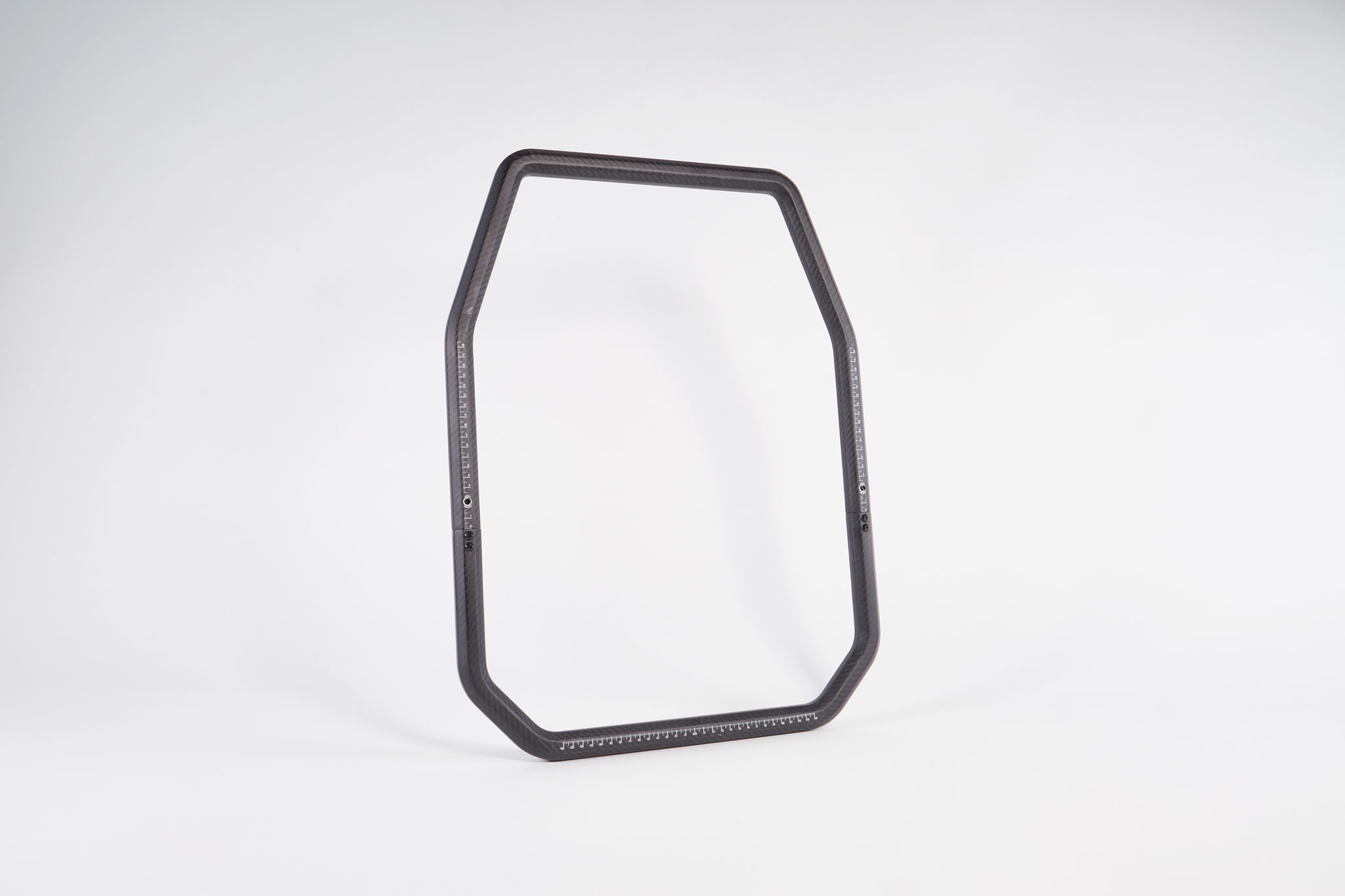

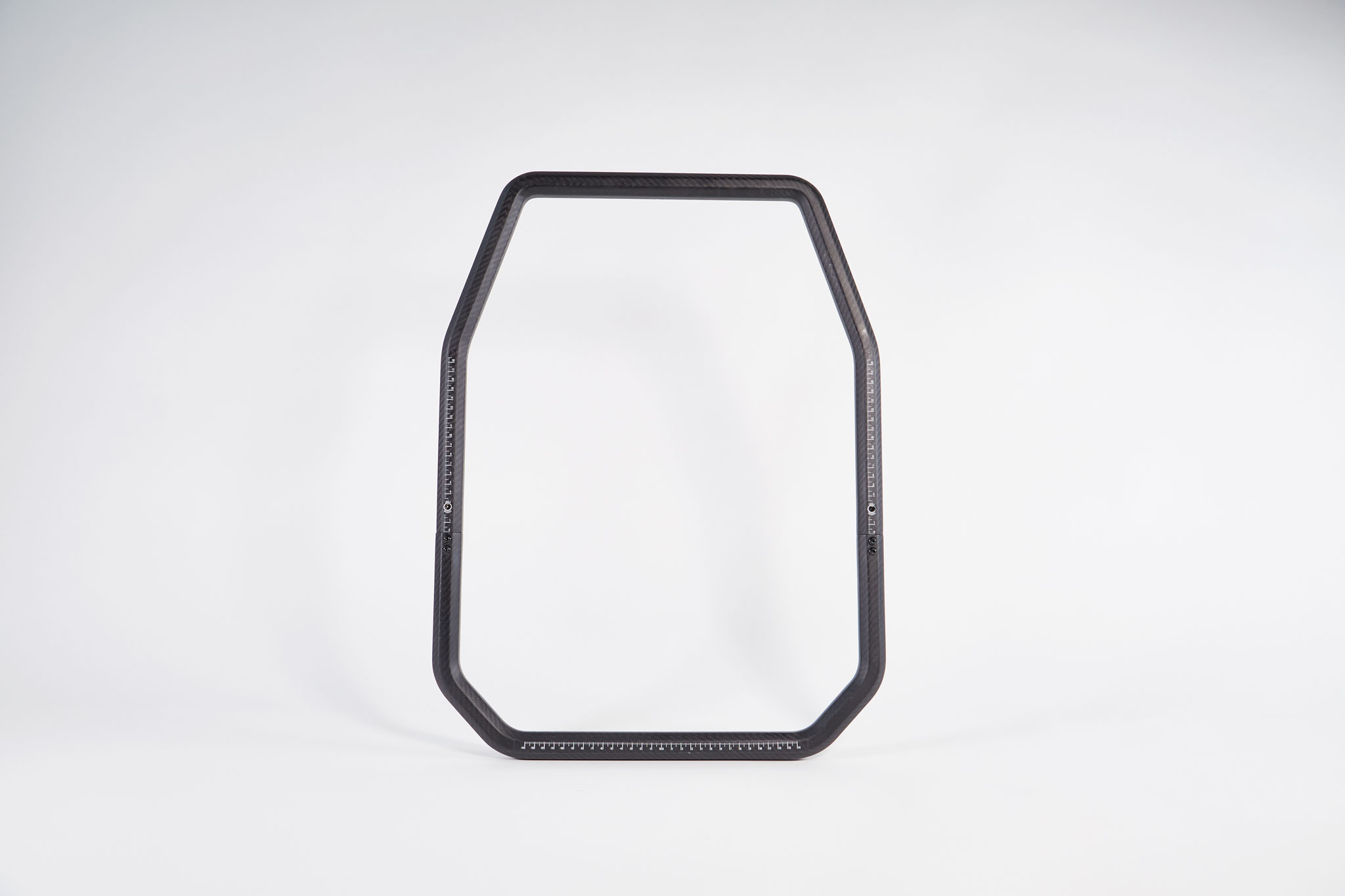

Full ring

The full ring is a kit with both the top and bottom frame.

  • Height: 640 mm
  • Width: 480 mm
  • Depth: 30 mm
  • Weight: 690 g

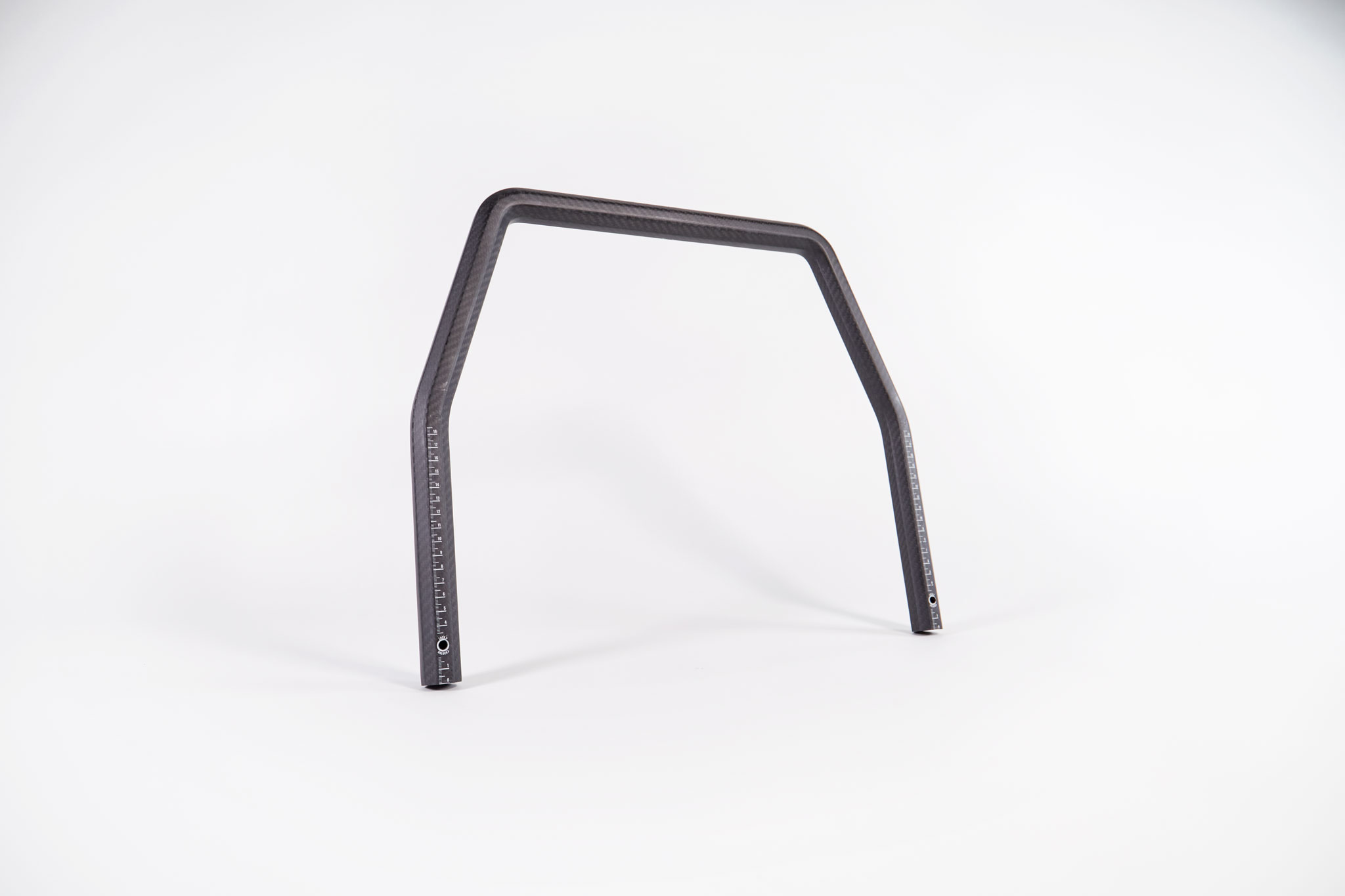

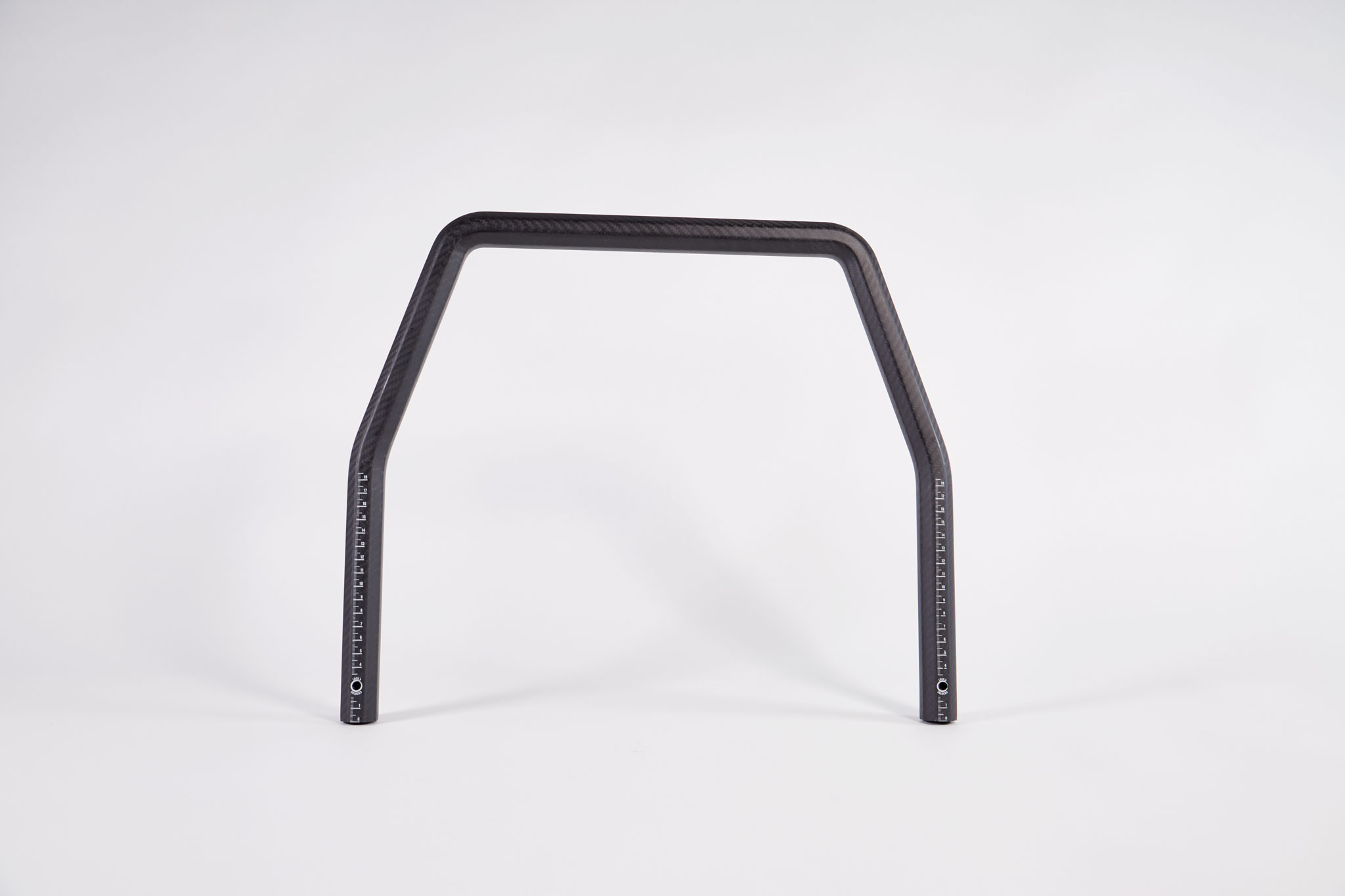

Top Frame

The top frame is where you’d normally attach your gimbal. It can work without the bottom frame, if you plan to dock it in the GLINK Docking Station.

  • Height: 400 mm
  • Width: 480 mm
  • Depth: 30 mm
  • Weight: 340 g

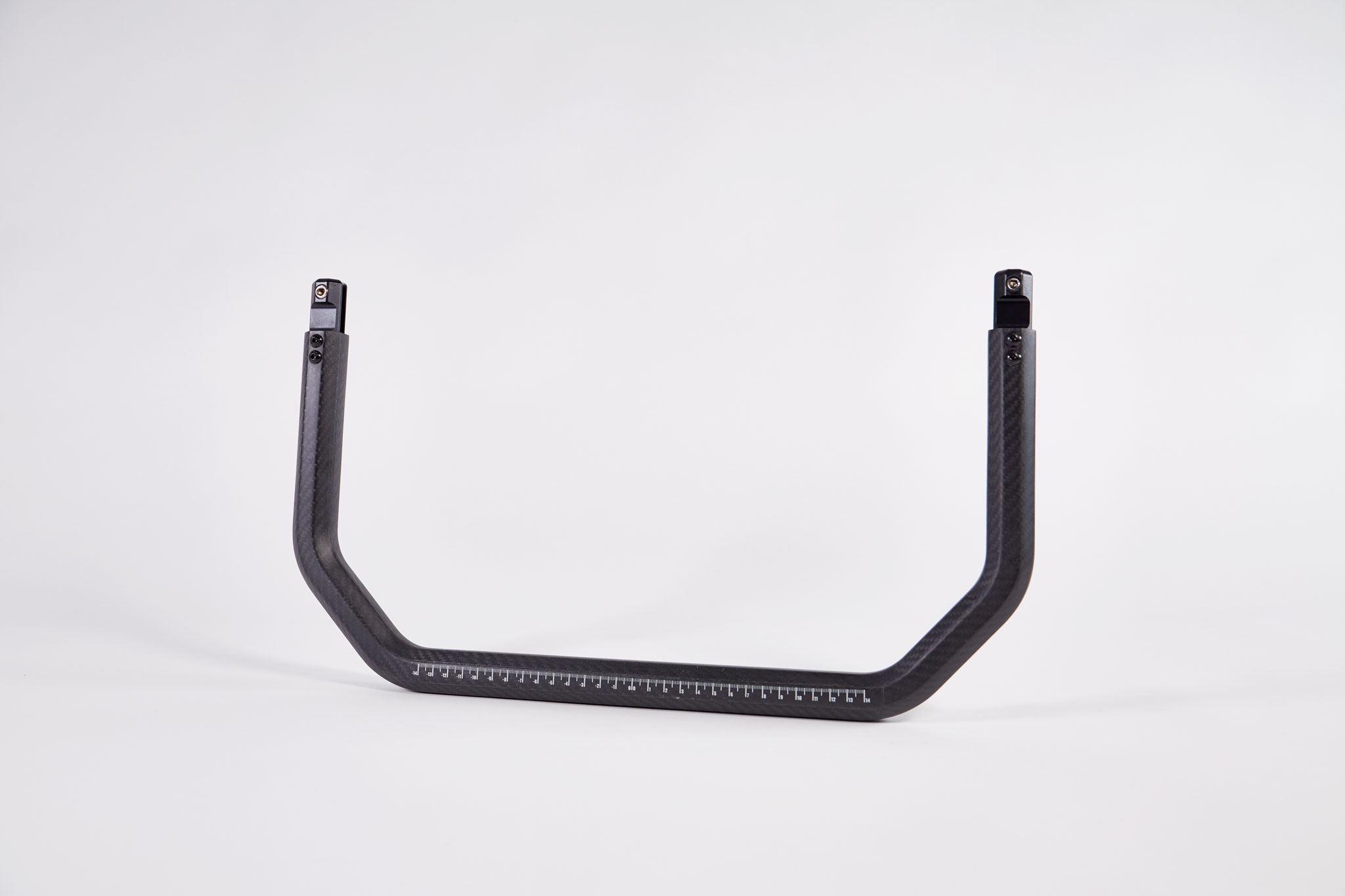

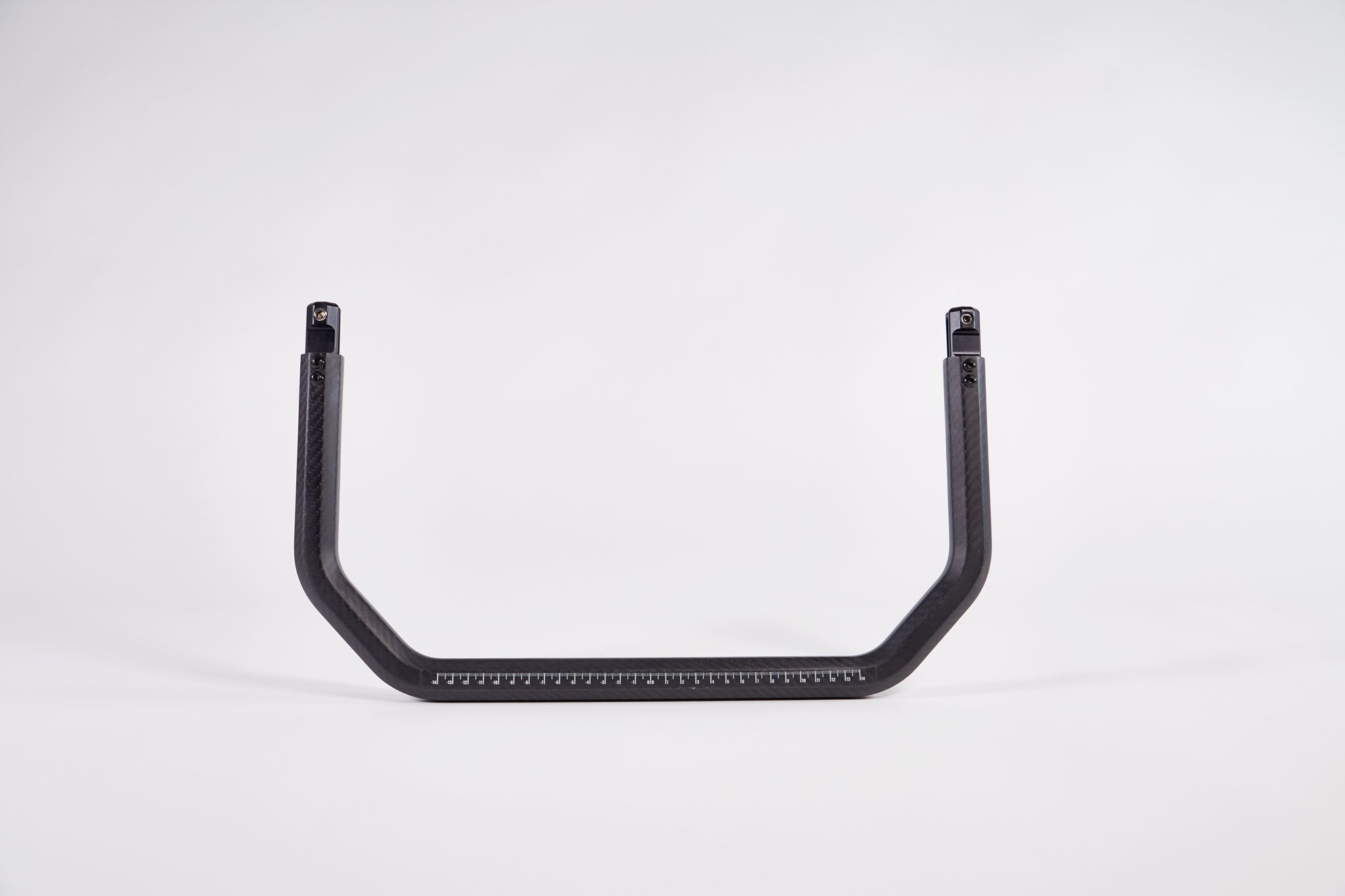

Bottom Frame

The bottom frame is needed if you’d like to work without the GLINK Docking Station, or if you need to mount your gimbal over slung.

  • Height: 240 mm
  • Width: 480 mm
  • Depth: 30 mm
  • Weight: 350 g

MOUNTING OPTIONS

The GLINK CF Ring is designed to carry two GLINK gimbal handle units attached to either side and one set of GLINK MoVI / R2 mount and/or GLINK Hand held mount. Additional GLINK Monitor clamps or GLINK Feets can also be mounted easily in addition to the rest.

Specification: CF Ring

CF Ring

248.00495.00
