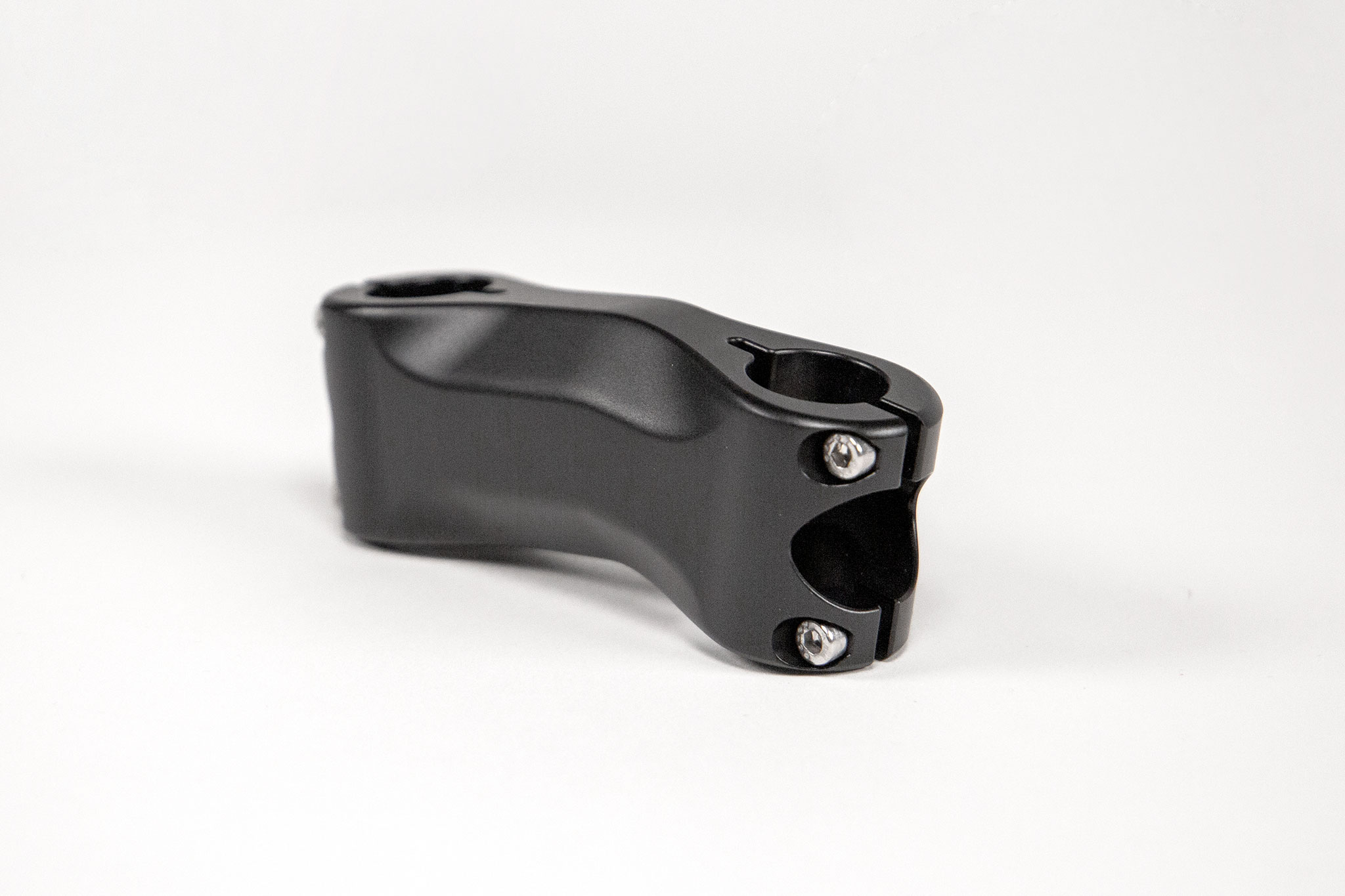

Low mode angled link bracket
The Low mode angled link bracket is used in low mode to join various length xARM extended arm posts with a normal arm post, at a 15 degree angle. The angled low mode bracket creates better clearance and hand grip position for the operators hand, while controlling the sled in low mode, that doesn’t interfere with the gimbal yoke.

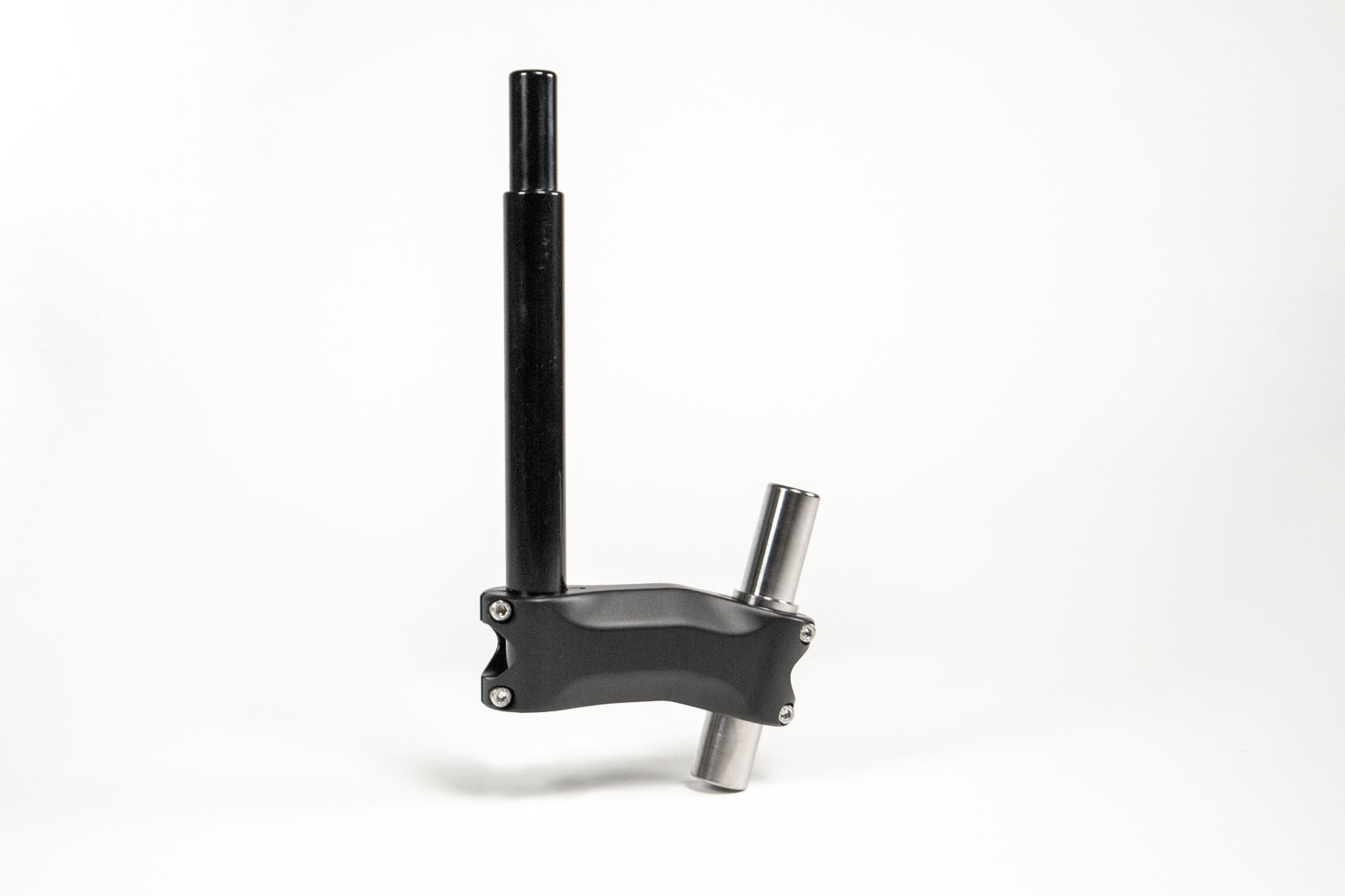

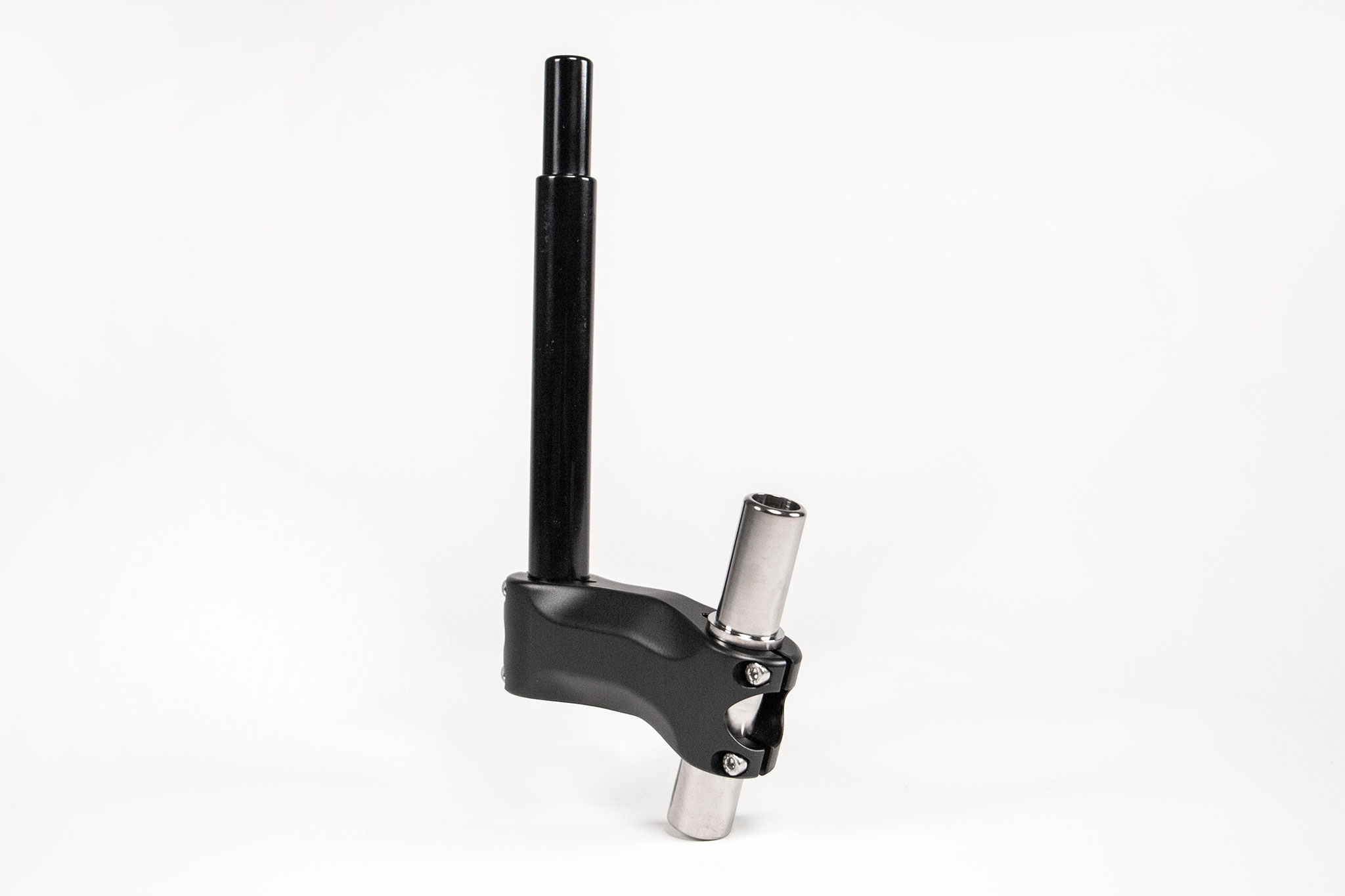

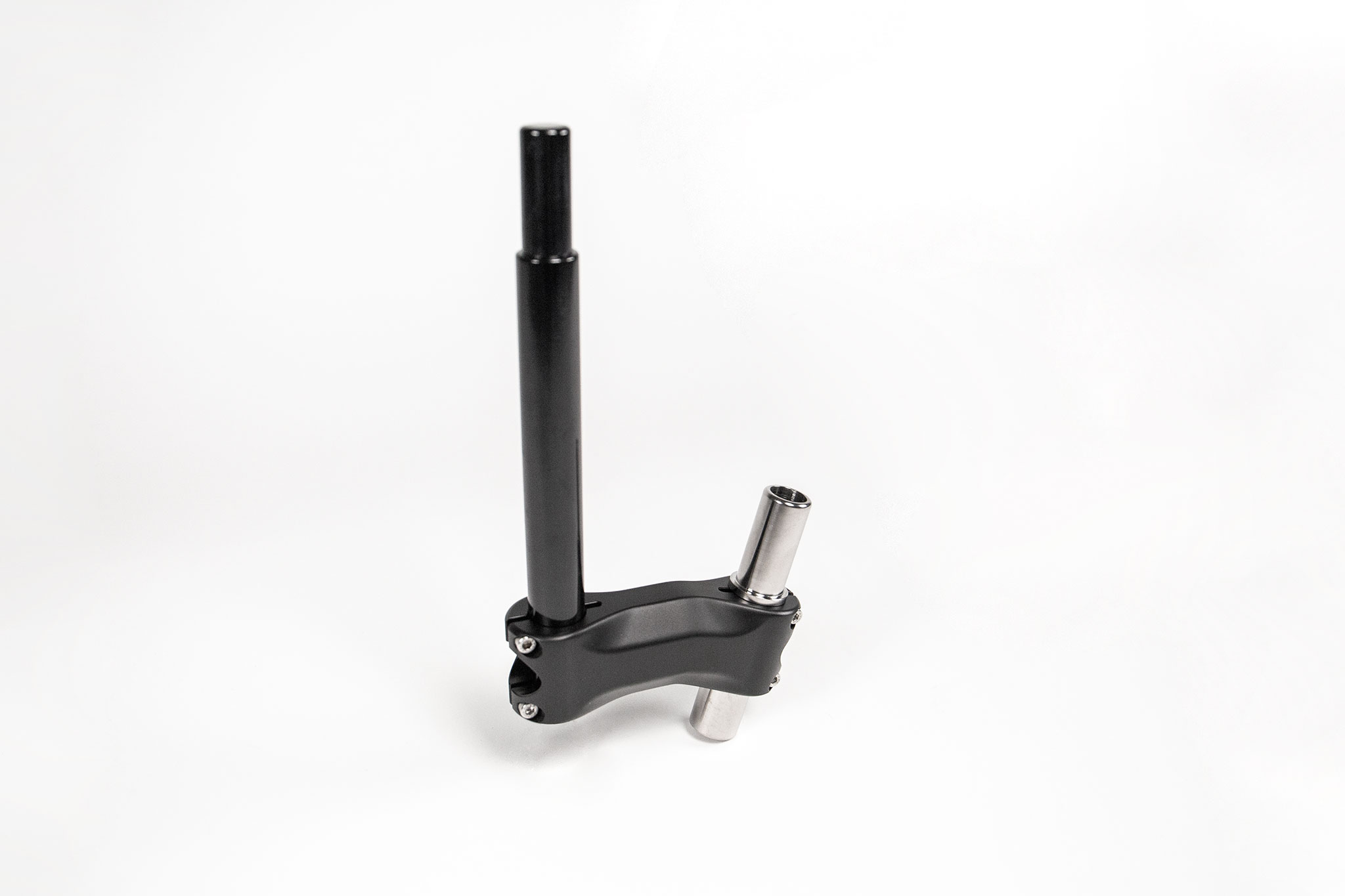

In low mode, the operator uses the 265mm /10.5” or 165mm /6.5” post in the xARM and clamps the bracket at the bottom of the post, with the regular arm post on the other side connected to the gimbal. This gives 70mm more clearance between the sled and the arm and up to 215mm / 8.45” lower connection to the gimbal than a normal arm post.
Specification: Low mode angled link bracket
|15 × 10 × 10 cm
