Tranquilizer

1,650.00

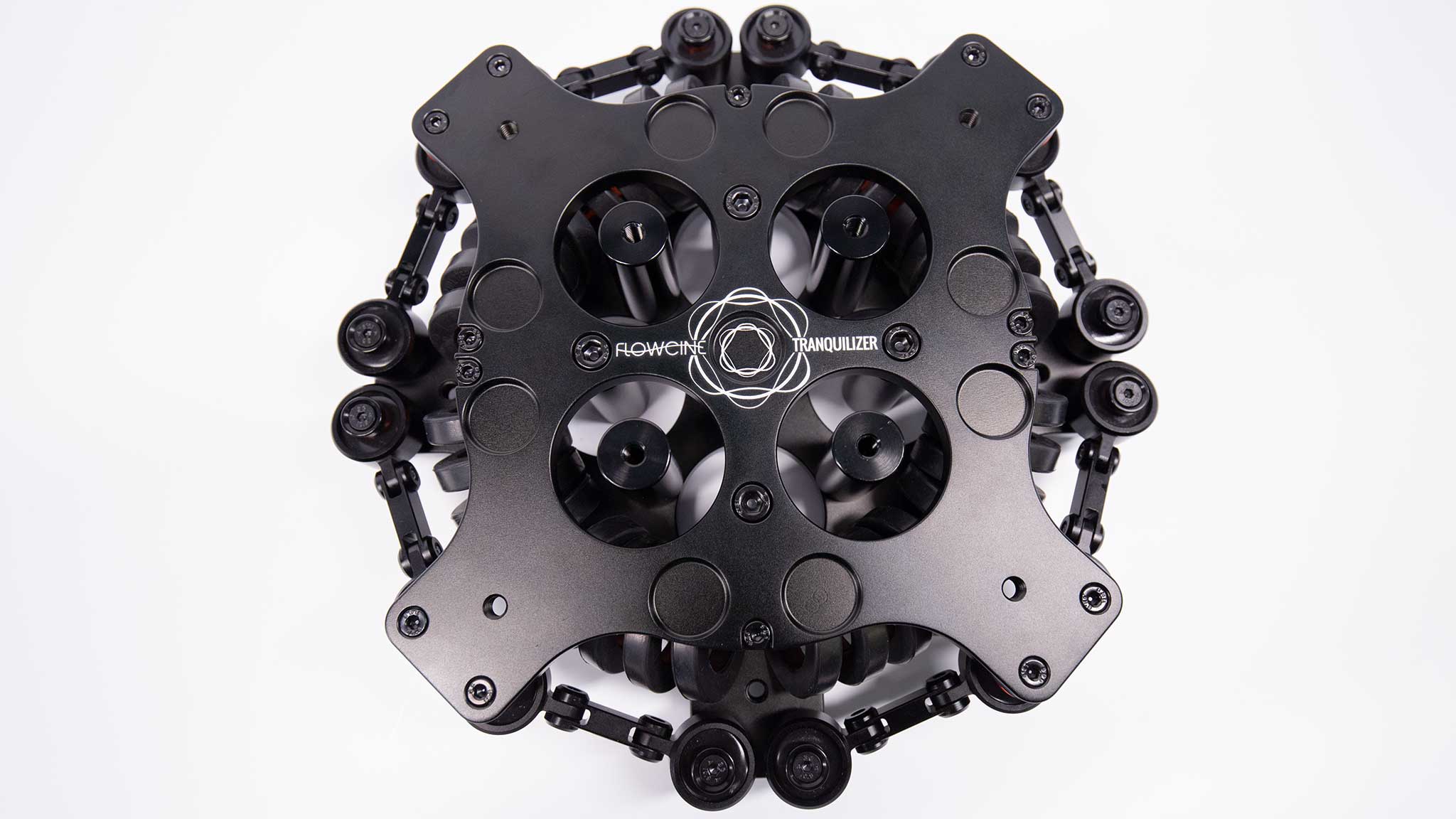

The Flowcine Tranquilizer is the next-generation of vibration isolators, specifically designed around the geometry of a electronic gimbal device.

SKU: Blk-Tranq Category:

Tranquilizer – quick info

The Flowcine Tranquilizer has been carefully built from ground up to meet the following criterias:

  • Small in size
  • Stabilize lighter gimbals with small amounts of mass
  • Reduce vibrations from lowest possible frequency range and maximise motor torque without getting into self oscillation, which is a common problem with wire rope isolators.

How does it work?

The Flowcine Tranquilizer use custom polymers instead of wire rope. We have a system that lets you to go from different types of hardness and amount of polymers, that allows for perfect tweaking of your setup weight, allowing the Tranquilizer to work optimally. The package ships with two sets of polymers, shore 30 and shore 40, and you can easily add more sets if you have a wide span of different gimbals you want to change between, however since the system easily lets you add and subtract the amount, you already have a great range of freedom in weight span with the default package.

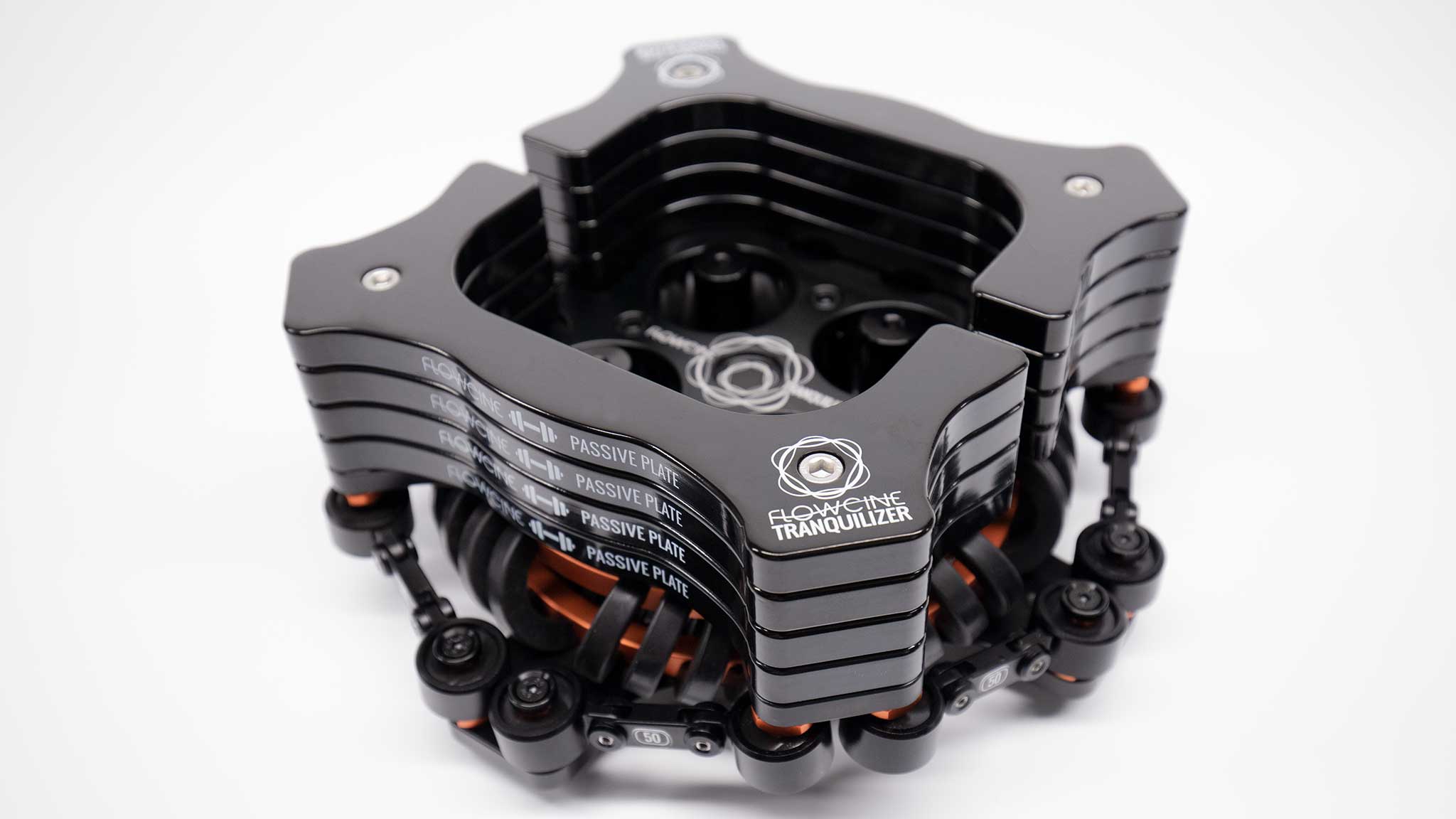

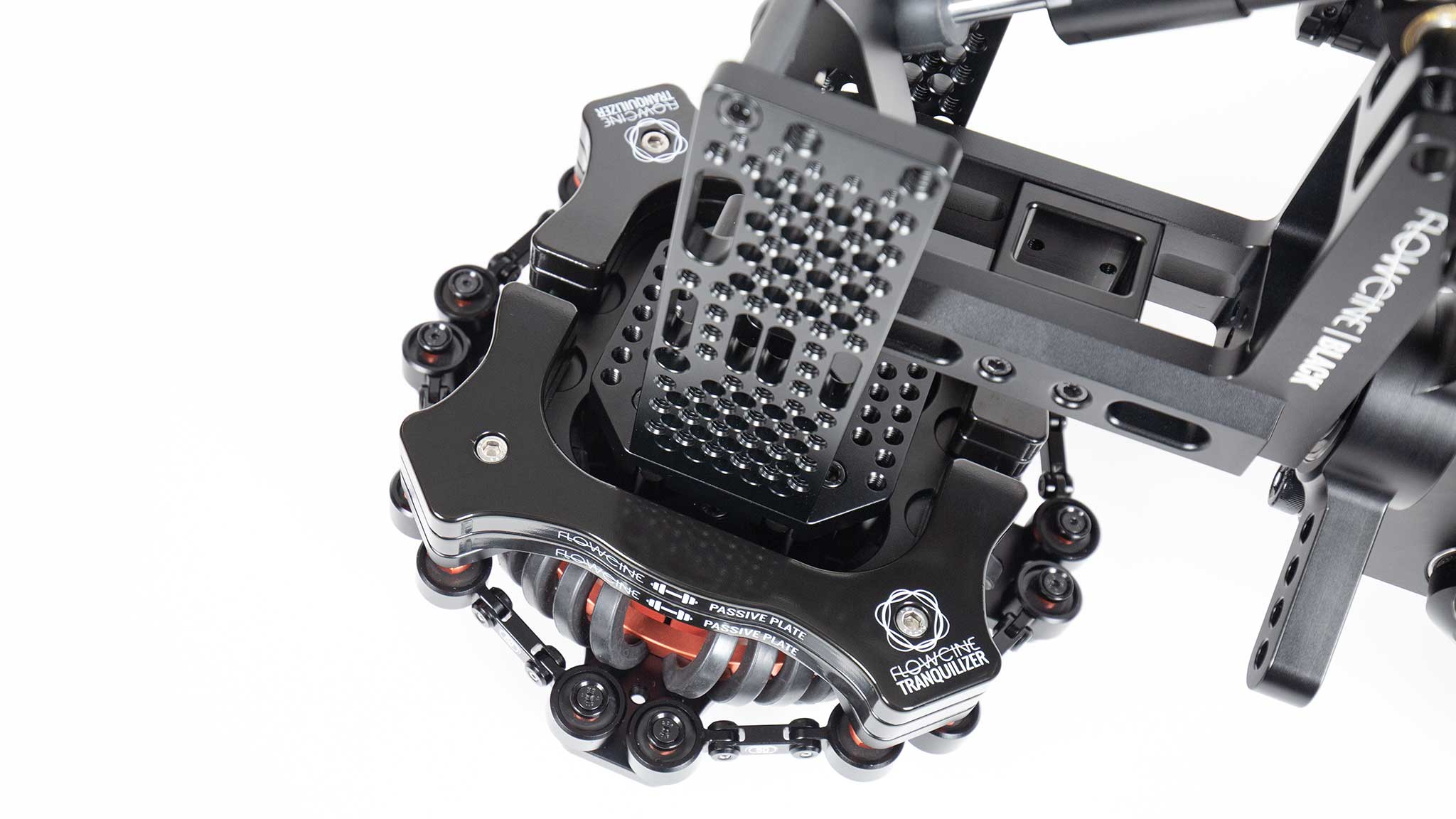

The Tranquilizer also includes the Flowcine Passive plates. These adds more mass to the system, and lets you dial in the perfect weight and also makes a huge difference compensating incoming hard shocks. These are very easy to add and remove on the fly, while your gimbal is already attached to the system. We include eight of the passive plates in the package, enabling you to add just over 5KG/11LBS to the Tranquilizer.

To reduce the problem with when the pan motor goes into self oscillation, we have a design that allows the system to reduce a great deal of incoming vibrations, while at the same time keep the gimbal in check from jittering around the pan axis. This allows you to tune your gimbal/gyrohead with the highest possible pan motor torque settings and the result will be a head that better handles high speeds, wind and other dynamics when shooting from vehicles.

All in all, the Tranquilizer is a huge step forward to help you produce the smoothest footage possible

Tranquilizer weight ranges:

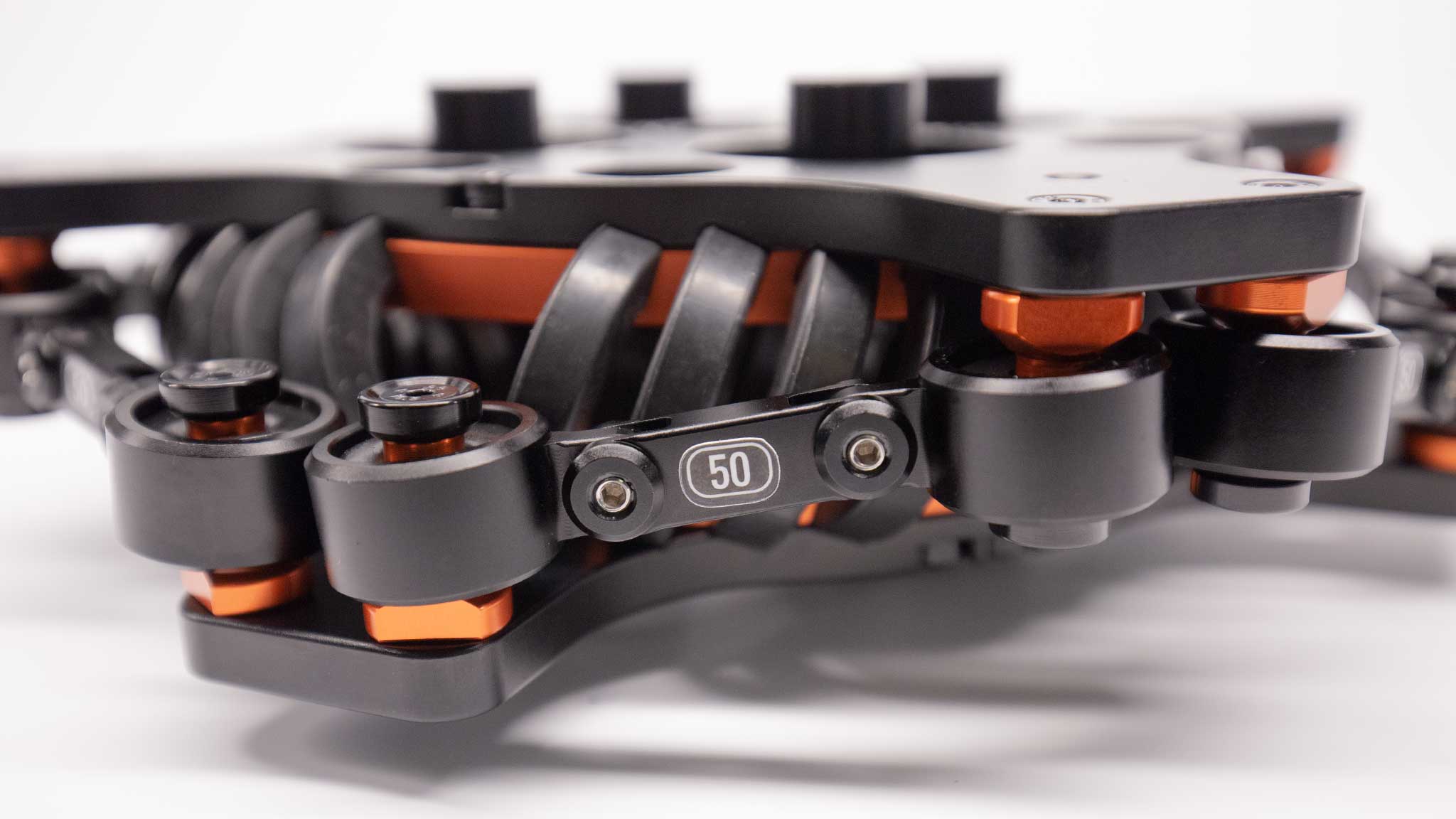

The Tranquilizer ships with two sets of polymers, the shore 30 and shore 40. 20, 50 and 60 are sold separately.
Softer shores (20/30) are best suited for lighter rigs and/or flat (regular car) road. Harder shores (40/50/60) are more suitable for heavier rigs and/or offroad (ATV) driving. Weights below includes eventual passive plates.

  • Shore 20 weight range: up to 5.40 – 10.75kg
  • Shore 30 weight range: up to 6.70 – 13.25kg
  • Shore 40 weight range up to 11.25 – 22.50kg
  • Shore 50 weight range up to 13.75 – 27.50kg
  • Shore 60 weight range up to 19.00 – 34.50kg

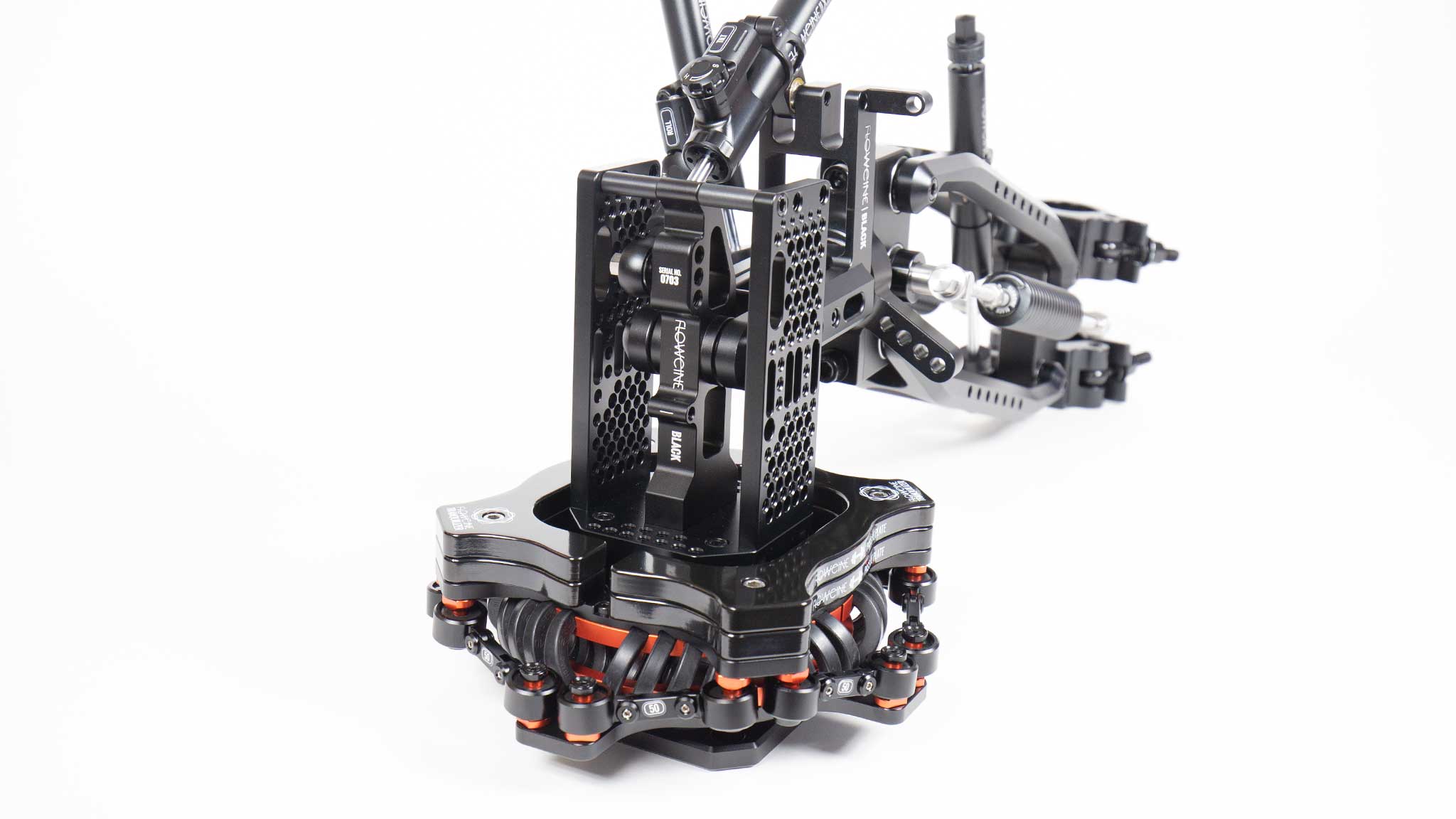

Note: The Tranquilizer is made for under slung operation.

Specification: Tranquilizer

Shipping weight8.1 kg
Shipping dimensions39 × 27 × 27 cm
